CLOSED TO ROID FOR RESIDUAL CURRENT PROT
IDR6,841,451.70
IDR6,841,451.70
In stock
SKU
50442
PRE ORDER
Duration Pre-Order : 60
Duration Pre-Order : 60

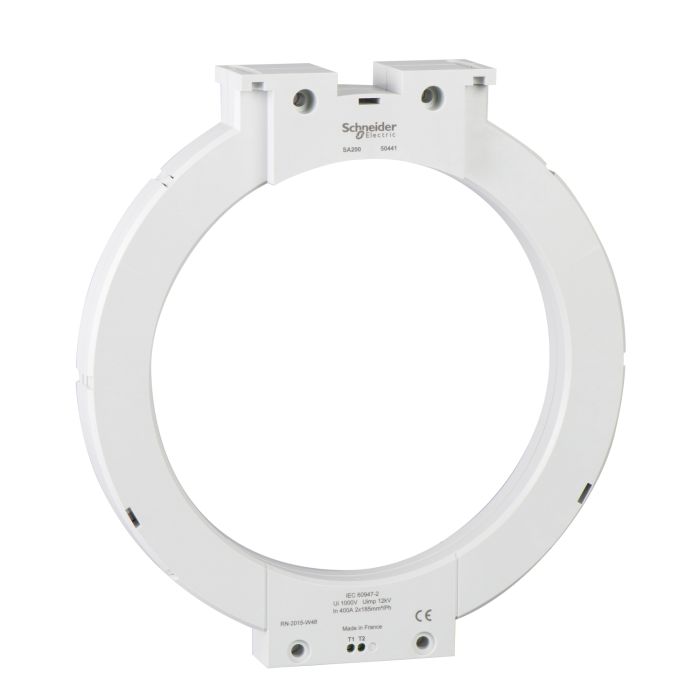

This toroid is dedicated to Vigilohm Insulation Fault locators, and to Vigirex residual current protection and monitoring relays. The inner diameter of the toroid is 300 millimeters and the weight is 2.280kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 150 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 240mm² for a copper conductor. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 630A for Vigirex monitoring and protection relays.
| SKU | 50442 |
|---|---|
| range compatibility | Vigirex RH plug-in relay |
| product or component type | earth leakage current sensor |
| device short name | GA300 |
| range | Vigirex |
| [Ie] rated operational current | 630 A |
| device application | equipment monitoring and control |
