CVS100B TM63D 3P3D
Special Price
IDR796,488.00
IDR796,488.00
Regular Price
IDR1,617,100.00
In stock
SKU
LV510305

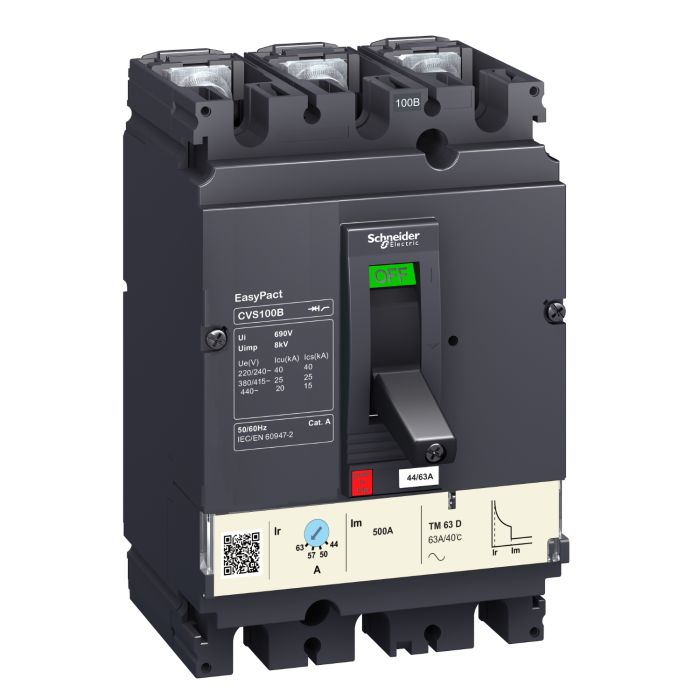

EasyPact CVS100B is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
| SKU | LV510305 |
|---|---|
| range of product | Easypact CVS100...250 |
| product or component type | circuit breaker |
| range | EasyPact |
| device application | distribution |
| device short name | CVS100B |
| trip unit name | TM-D |
| utilisation category | category A |
| [In] rated current | 100 A at 40 °C |
| breaking capacity | 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2, 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| trip unit rating | 63-63 A at 40 °C |
| network type | AC |
| breaking capacity code | B |
| poles description | 3P |
| protected poles description | 3d |
| protection type | overload protection (thermal), short-circuit protection (magnetic) |
| product name | EasyPact CVS |
| trip unit technology | thermal-magnetic |
| earth-leakage protection | without |
